I played Codegate CTF 2020 in shibad0gs. I was busy for another upcoming event and couldn't work on it full time but I solved some challenges and we reached 30th place.

As the challenge doesn't have category, I randomly picked up tasks.

• [333pts] SimpleMachine
• [702pts] malicious

Tasks and solvers:

bitbucket.org

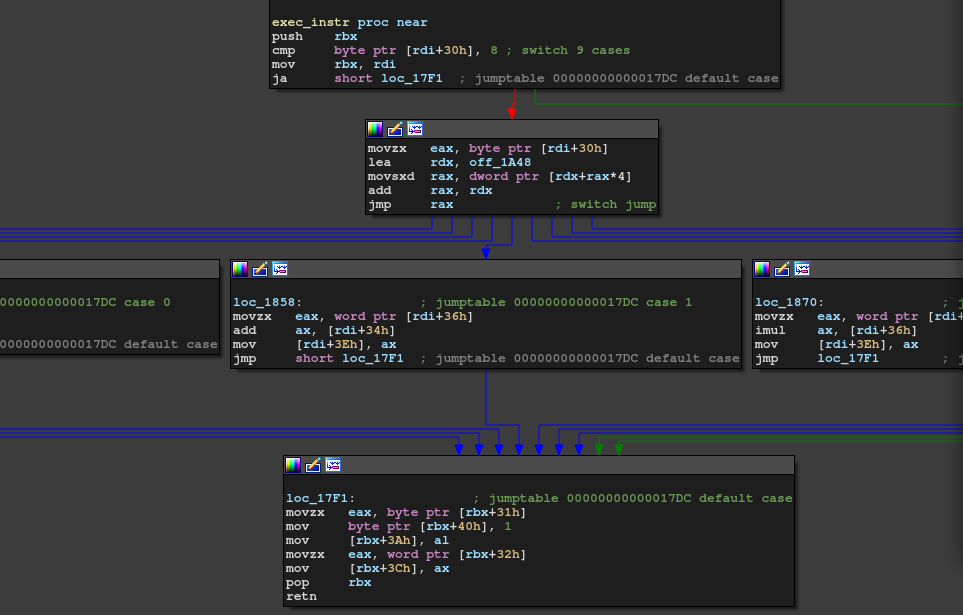

We're given a stripped ELF possibly written in C++, and a file named target. It's a simpe VM and the target code accepts user input and validates if it's correct. Every instruction is 8-byte length and the first byte determines the instruction. This is the switch statement:

It has only 8 instructions: mov, add, mul, xor, cmp, jnz, read, write. I wrote gdb script which forces it to trace the correct path and dumped the traces.

import gdb
import re

def get_arg():
    v = int(re.findall("\t0x([0-9a-f]{8})", gdb.execute("x/1xw $rdi + 0x34", to_string=True))[0], 16)
    return v & 0xffff, v >> 16

gdb.execute("break *0x00005555555558c0")
gdb.execute("break *0x00005555555558a0")
gdb.execute("break *0x0000555555555888")
gdb.execute("break *0x0000555555555870")
gdb.execute("break *0x0000555555555858")
gdb.execute("break *0x0000555555555848")
gdb.execute("break *0x0000555555555830")
gdb.execute("break *0x0000555555555810")
gdb.execute("break *0x00005555555557e0")
gdb.execute("run ./target < input")

flag = ''
log = ''
skip = False
while True:
    rip = int(re.findall("0x([0-9a-f]+)", gdb.execute("i r $rip", to_string=True))[0], 16)
    if rip == 0x00005555555557e0:
        arg1, arg2 = get_arg()
        log += "[+] read 0x{:04x}, 0x{:04x}\n".format(arg1, arg2)
    elif rip == 0x0000555555555848:
        arg1, arg2 = get_arg()
        log += "[+] mov 0x{:04x}, 0x{:04x}\n".format(arg1, arg2)
    elif rip == 0x0000555555555858:
        arg1, arg2 = get_arg()
        log += "[+] add 0x{:04x}, 0x{:04x}\n".format(arg1, arg2)




    elif rip == 0x0000555555555870:
        arg1, arg2 = get_arg()
        log += "[+] mul 0x{:04x}, 0x{:04x}\n".format(arg1, arg2)
    elif rip == 0x0000555555555888:
        arg1, arg2 = get_arg()
        log += "[+] xor 0x{:04x}, 0x{:04x}\n".format(arg1, arg2)
    elif rip == 0x00005555555558a0:
        arg1, arg2 = get_arg()
        if arg2 == 0xc:
            skip = True
        else:
            skip = False
        log += "[+] cmp 0x{:04x}, 0x{:04x}\n".format(arg1, arg2)
    elif rip == 0x00005555555558c0:
        arg1, arg2 = get_arg()
        log += "[+] jnz 0x{:04x}, 0x{:04x}\n".format(arg1, arg2)
        if not skip:
            gdb.execute("set {short}*{$rdi + 0x34} = 0")
    elif rip == 0x0000555555555810:
        with open("trace.txt", "w") as f:
            f.write(log)
        break
    gdb.execute("continue")

This dumps something like this:

[+] read 0x4000, 0x0024
[+] add 0x4f43, 0xb0bd
[+] cmp 0x0000, 0x0000
[+] jnz 0x0000, 0x01a0
[+] add 0x4544, 0xbabc
[+] cmp 0x0000, 0x0000
[+] jnz 0x0000, 0x01a0
[+] add 0x4147, 0xbeb9
[+] cmp 0x0000, 0x0000
[+] jnz 0x0000, 0x01a0
[+] add 0x4554, 0xbaac
...

Just read the trace and wrote the solver.

from ptrlib import *

flag = b''
flag += p16(0x10000 - 0xb0bd)
flag += p16(0x10000 - 0xbabc)
flag += p16(0x10000 - 0xbeb9)
flag += p16(0x10000 - 0xbaac)
flag += p16(0x10000 - 0xcfce)
flag += p16(0x10000 - 0xcfce)
keyList = (
    (0x63f7, 0xf974),
    (0xa419, 0x2b9d),
    (0xec2b, 0x4caf),
    (0x347d, 0xbee1),
    (0x5c87, 0xfc0d),
    (0xe589, 0x6e48),
    (0x2e9b, 0xe03c),
    (0x73ad, 0xd322),
    (0x94f7, 0x1979),
    (0xbd19, 0x36d6),
    (0xc72b, 0x40e8),
    (0x497d, 0xcbf7),
)
for key in keyList:
    for x in range(0x10000):
        if (x ^ key[0]) + key[1] == 0x10000:
            break
    flag += p16(x)
print(flag)

That's it.

CODEGATE2020{ezpz_but_1t_1s_pr3t3xt}

We're given a 32-bit PE. In the first phase, the program initializes a buffer, which turned out to be decryption key later. As I didn't know it's important, I skipped this phase at first. In sub_403db11 has a code decryption process.

By googling the magic numbers, I found the used cipher was Camellia. So, we need to get the key but it's the one the program initialized in the first phase. Since a remote server feeds the latter part of the key and it's down, we can't get the key. However, there's a check for the key.

I had been stuck here as sub_4039be was too complex to analyse. After a while, @akym found it's just a MD5. Also he dumped the decrypted PE :-)

Now we're in the second stage. In this stage, the program decrypts and writes bootloader to PhysicalDrive1000. I decrypted and dumped the bootloader.

#include <openssl/camellia.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

unsigned char rawKey[] = "p4y1oad_3nc_key!";
unsigned char code[0x4400];
int main() {
  FILE *fp = fopen("hoge.exe", "rb");
  fseek(fp, 0x4e40, SEEK_SET);
  fread(code, 1, 0x4400, fp);
  fclose(fp);

  CAMELLIA_KEY keyTable = {0};
  Camellia_set_key(rawKey, 0x80, &keyTable);
  for(int i = 0; i < 0x4400; i += 0x10) {
    Camellia_decrypt(&code[i], &code[i], &keyTable);
  }

  fp = fopen("bootloader", "wb");
  fwrite(code, 1, 0x4400, fp);
  fclose(fp);
}

Okay, now we're in the third stage.

$ file bootloader
bootloader: DOS/MBR boot sector MS-MBR

Another unpacker......

Decode.

with open("bootloader", "rb") as f:
    output = f.read(0x30)
    code = f.read(0xe0 - 0x30)

    for c in code:
        output += bytes([c ^ 0xf4])

    output += f.read()

with open("decoded_bl", "wb") as f:
    f.write(output)

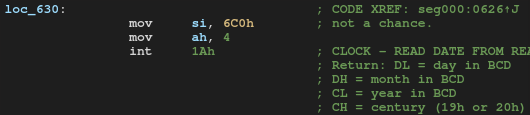

It checks the century. It prints "not a chance." and exits if it's less than 0x30.

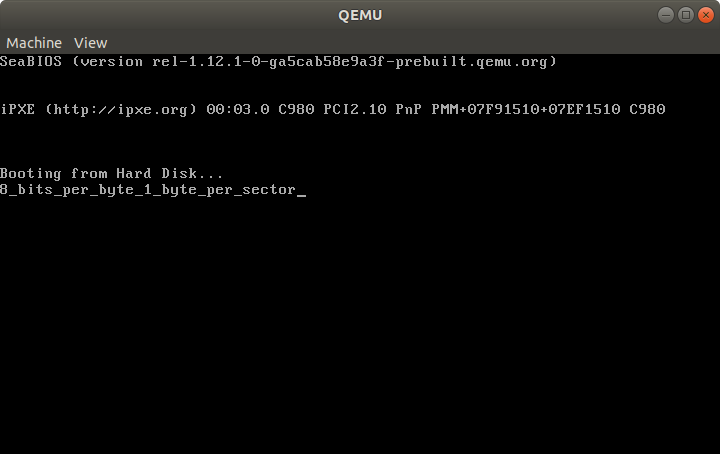

Also, there's a loop in which it reads and writes from/to hard disk 0xdead * 0xbeef times. I disabled those processes and patched the binary, run on the qemu. After trying several times, the flag showed up! (I don't know what it's doing inside tho)
